Popular Digital Altimeter With Hand Held

» General Lab Equipment » Popular Digital Altimeter With Hand Held

  • Popular Digital Altimeter With Hand Held

    CATEGORY AND TAGS:
    General Lab Equipment

    Model:A130

    enquiry
    • Specifications

    Product Description

    This instrument is a digital height measuring instrument, suitable for measuring the height of trees in forestry surveys, and can also be used for electric power, iron towers, freight transport, and etc., where distance measurement, angle measurement, and height measurement are required.
    1. distance measurement, angle measurement (AD) function.
    2. Two-point height measurement (2H) function.
    3. Three-point height measurement (3H) function.
    4. Use front sight as sight.
    5. It is powered by a rechargeable lithium battery, which can be used continuously for about 8 hours when fully charged.
    6. If the instrument does not do any operation within the set time (maximum 999S), it will automatically shut down.

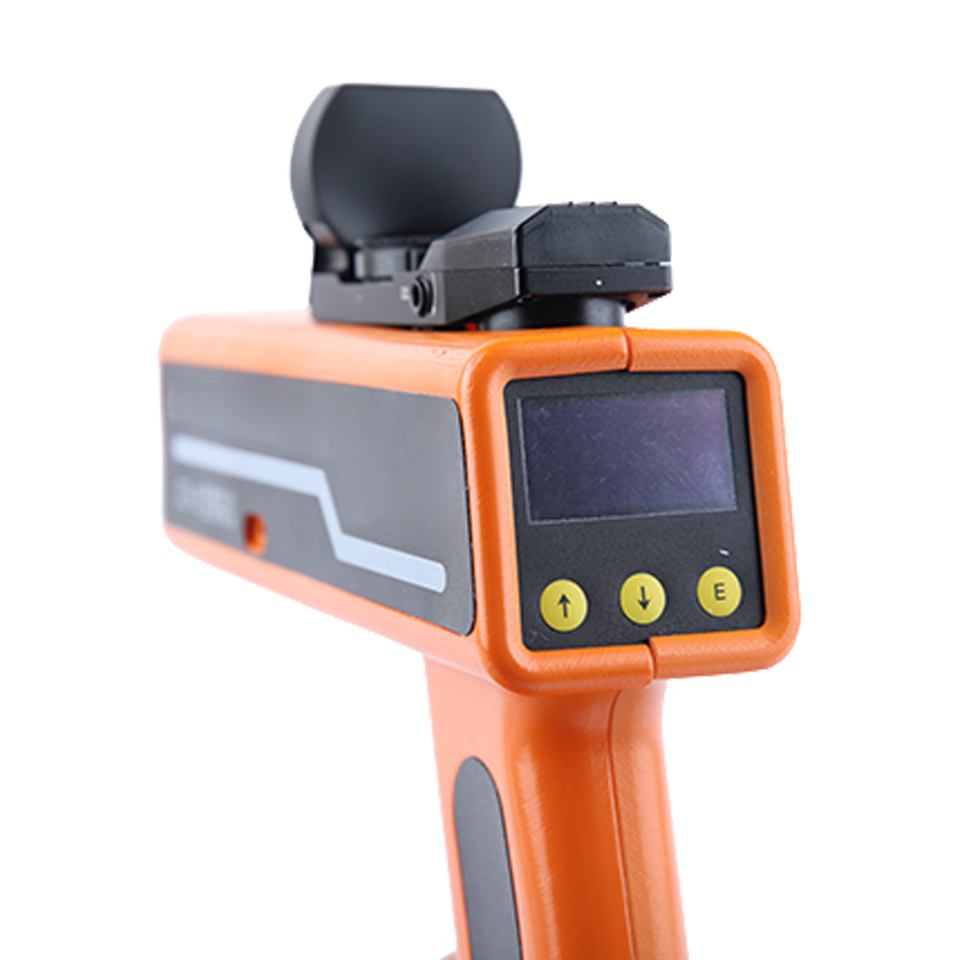

    7. The high-contrast OLED display screen is adopted, and the display effect is clear.
    8. There are two modes of use: hand-held and fixed, and the fixed method needs to be used with a tripod.

    Specification

    Product
    Hypsometer
    Laser Power
    5mW
    Distance Range
    0.1M ~ 20M
    Distance Accuracy
    ±5mm
    Angle Range
    ±60°
    Angle Accuracy
    0.5°
    Height Range
    0.5M ~ 35M *
    Height Accuray
    0.2M
    Working Temperature
    -20℃ ~ +40℃
    Power supply
    3.7V/1500mAh rechargeable lithium battery
    Size and Weight of the meter
    180mm × 170mm × 50mm, 550g
    Storage Temperature
    -40℃ ~ +60℃
