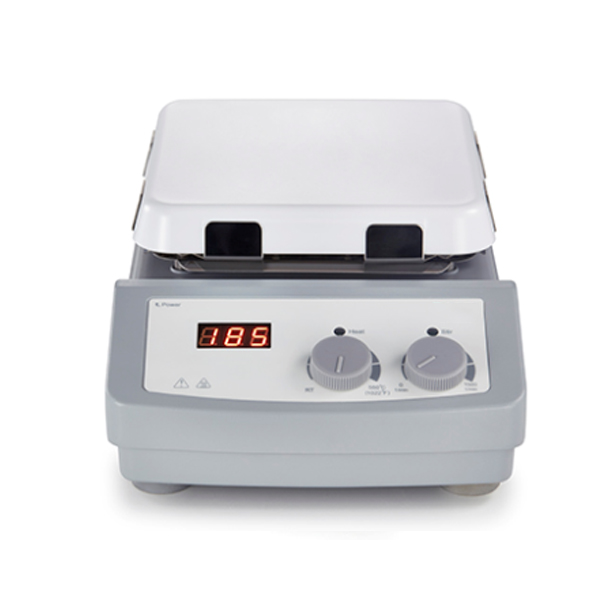

» General Lab Equipment » Cheap Lab Portable Hot Plate
• LED screen shows the temperature
• Max. temperature up to 550°C
• Separate safety circuits with fixed safety temperature of 580°C

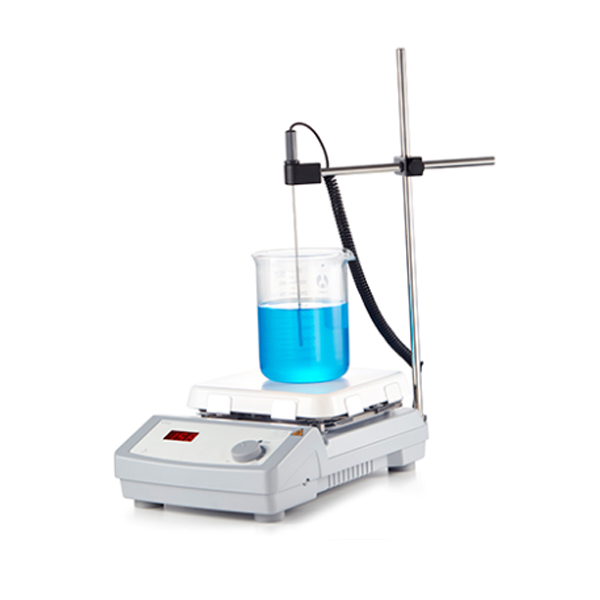

• External temperature control is possible by connecting the temperature sensor(PT 1000) with accuracy at ±0.5°C
• Glass-ceramic work plate provides excellent chemical-resistant performance and most efficient heat transfer
• The “HOT” warning will flash if the work plate temperature is above 50°C even when the hotplate is turned off
|
Specifications
|
HP550-S
|
|
Work plate Dimension
|
184x184mm(7 inches)
|
|
Work plate material
|
Glass-ceramic
|
|
Power
|
1010W
|
|
Heating Power
|
1000W
|
|
Voltage
|
100-120/200-240V,50/60Hz
|
|
Heating position
|
1
|
|
Heating temperature range
|
Room temp.-550°C, increment 5°C
|
|
Control accuracy of work plate
|
±10°C
|
|
Safety temperature
|
580°C
|
|
Temperature display
|
LED
|
|
Temperature display accuracy
|
±1°C
|
|
External temperature sensor
|
PT1000(±0.5°C)
|
|
Heating warning
|
50°C
|
|
Protection class
|
IP21
|
|
Dimension [W x D x H]
|
215x360x112mm
|
|
Weight
|
4.5kg
|
|
Permissible ambient temperature and humidity
|
5-40°C, 80%RH
|
