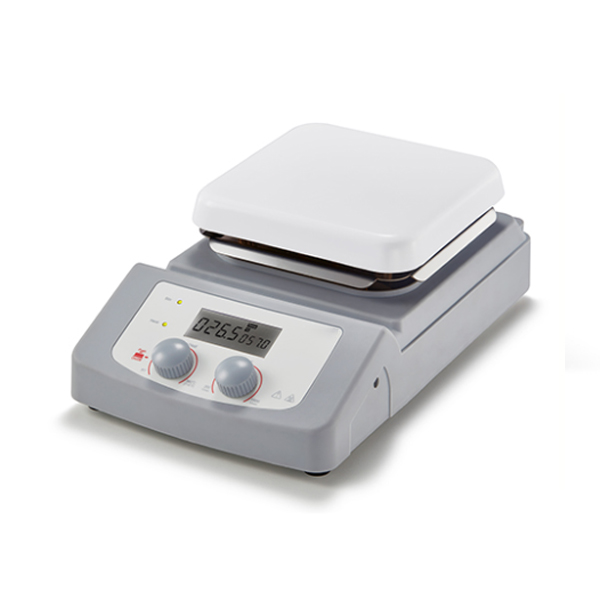

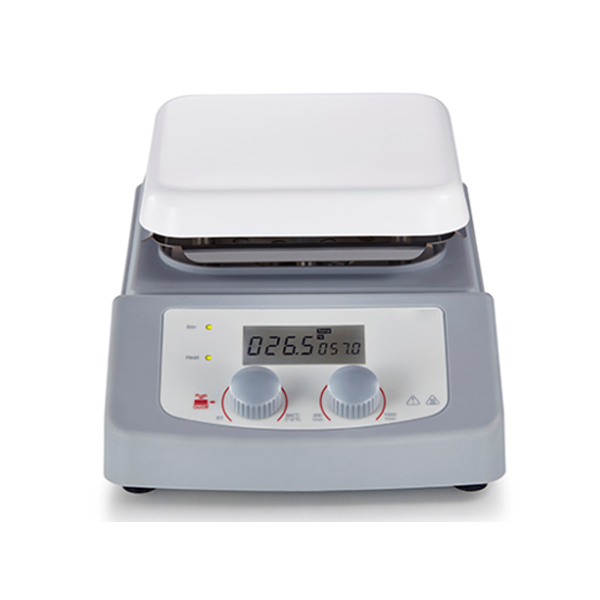

China Guaranteed Quality Hotplate Stirrer

» General Lab Equipment » China Guaranteed Quality Hotplate Stirrer

    • China Guaranteed Quality Hotplate Stirrer

    CATEGORY AND TAGS:
    General Lab Equipment

    Model: MS-H380-Pro

    enquiry
    • Specifications
    Key Features

    • Max. heating temperature is 380°C
    • High-resolution LCD displays the actual temperature
    • Brushless DC motor is maintenance-free
    • Aluminum cover with ceramic work plate allows for immediate heat transfer
    • External temperature control is possible with temperature sensor PT1000
    • Digital temperature control with max. the temperature at 380°C
    • Max. stirring quantity of H2O at 5L

    Specifications
    Specifications
    MS-H380 Pro
    Work plate Dimension
    140x140mm
    Work plate material
    Aluminum cover with ceramic coating
    Motor type
    Brushless DC motor
    Motor rating input
    2.4W
    Motor rating output
    1.8W
    Power
    510W
    Heating output
    500W
    Voltage
    100-120/200-240V 50/60Hz
    Stirring positions
    1
    Max. stirring quantity[H2O]
    5L
    Max. magnetic bar[length]
    50mm
    Speed range
    200-1500rpm
    Speed display
    LCD
    Temperature display
    LCD
    Heating temperature range
    Room temp.+5°C – 380°C
    Overheat Protection
    420°C
    Temperature display accuracy
    ±0.1°C
    External temperature sensor
    PT1000 (accuracy ±0.5°C)
    Control accuracy of the sensor
    ±20rpm
    Protection class
    IP21
    Dimension [W x D x H]
    320×180×108mm
    Weight
    2.2kg
    Permissible ambient temperature and humidity
    5-40°C 80%RH
