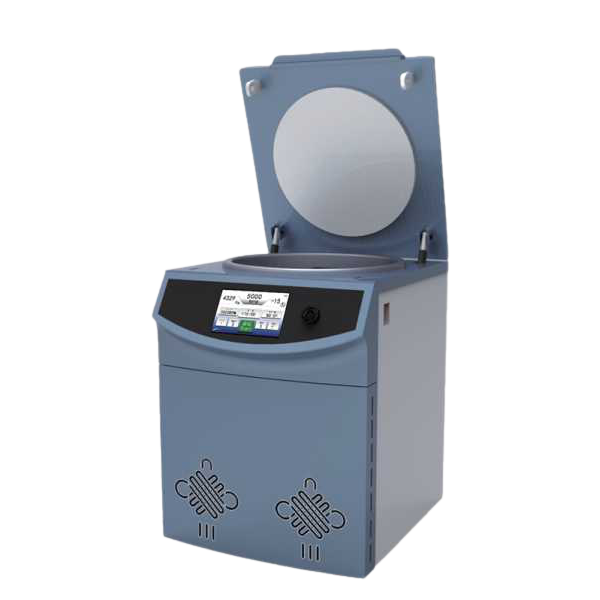

Electric Mini High Speed Centrifuge Machine

» Seed Analysis » Electric Mini High Speed Centrifuge Machine

Electric Mini High Speed Centrifuge Machine

CATEGORY AND TAGS:
Seed Analysis

Model: TP4-20R

enquiry

Specifications

Product characteristics

* Double lock button electronic door lock, full steel door cover protection, superior to industrial standards.
* External heat dissipation design, efficient heat dissipation of the internal circuit of the main engine, the temperature rise in the cavity is better than the industry standard, to ensure the safety of the sample.
* High quality hydraulic rod, imported damper seal, hydraulic damper does not decay for ten years.
* Food-grade integrated silica gel sealing ring, life-long service, more sealable.
* The automatic identification system of magnetic rotor automatically matches the corresponding rotor program, prevents the rotor from overspeeding and ensures centrifugal safety.
* Humanized design is easy to operate, parameter setting is directly digital input, accurate to individual intelligent status prompt.
* It has many protective functions, such as door cover, overspeed, over-temperature, over-current, overpressure, over-heat, etc. The solution is more stable with simultaneous voice and text display.
* Unique noise reduction system, running more quiet.
* Self-diagnostic function voice text prompts and displays solutions, more stable and reliable with electronic instructions, never lost, easy to use.

Rotors of TP4-20 and TP4-20R Centrifuges

Model	TP4-20	TP4-20R
Capacity	12X1.5/2.0ml
Max RCF (rpm)	100-2 lOOOrpm	100-23000rpm
Max RCF (Xg)	29780 Xg	35720 Xg
Centrifugal tube size	O 10.3 X 41.2/X 10.7X42

Model	TP4-20	TP4-20R
Capacity	12 X 5ml
Max RCF (rpm)	100-18000rpm	100-20000rpm
Max RCF (Xg)	22640 Xg	27950 Xg
Centrifugal tube size	Medium 13.4X53.3

Model	TP4-20	TP4-20R
Capacity	24X 1.5/2.0ml
Max RCF (rpm)	100-16000rpm	100-18000rpm
Max RCF (Xg)	23470 Xg	29700 Xg
Centrifugal tube size	10.3 X 41.2/X 10.7X42

Model	TP4-20	TP4-20R
Capacity	12 X 10ml
Max RCF (rpm)	100-15000rpm	100-16000rpm
Max RCF (Xg)	20250 Xg	23040X g
Centrifugal tube size	Medium 15.7X80.5

Model	TP4-20	TP4-20R
Capacity	48X1.5/2.0ml
Max RCF (rpm)	100-14000rpm	100-16000rpm
Max RCF (Xg)	20488X g	26760X g
Centrifugal tube size	O 10.3 X 41.2/X 10.7X42

Model	TP4-20	TP4-20R
Capacity	4 X 100ml
Max RCF (rpm)	100-14000rpm	100-16000rpm
Max RCF (Xg)	22020X g	26760X g
Centrifugal tube size	Medium 37.8X106.2

Model	TP4-20	TP4-20R
Capacity	6 X 50mlSharp/Round type General purpose
Max RCF (rpm)	100-14000rpm	100-15000rpm
Max RCF (Xg)	20598 Xg	23645Xg
Centrifugal tube size	028.9X116/X 28.9X106.5

Model	TP4-20	TP4-20R
Capacity	12 X 15ml Sharp type
Max RCF (rpm)	100-12000rpm	100-14000rpm
Max RCF (Xg)	15775 Xg	21475Xg
Centrifugal tube size	Medium 16.5X120

Model	TP4-20	TP4-20R
Capacity	8 X 8 X 0.2mlPCR Pipe
Max RCF (rpm)	100-14000rpm	100-14000rpm
Max RCF (Xg)	16434 Xg	16434 Xg
Centrifugal tube size	240 X 145 X 27mm

Model	TP4-20	TP4-20R
Capacity	4X 500/750ml / adapter
Max RCF (rpm)	100-4200rpm	100-4200rpm
Max RCF (Xg)	3950 Xg	3950 Xg
Centrifugal tube size	Medium 78.7X135.7/① 99.5X138

Model	TP4-20 4-20R	TP4-20R
Capacity	4 X 2 X 96Elisa plate / Square hanging basket
Max RCF (rpm)	100-4200rpm 100-4200rpm	100-4200rpm
Max RCF (Xg)	3910Xg 3910Xg	3950 Xg
Centrifugal tube size	Shallow hole:①6.3X 11.2 /Deephole:① 7.7X28.3

Instruction：TP4-20/TP4-20Rcentrifuge can be adapted to a series of high-quality aluminium and patentable new material rotors. In addition to conventional rotors, TP4-20/TP4- 20R centrifuge also adds several specially designed rotors to meet specific application requirements. (For customized rotor, please contact manufacturer)
