EXTENSOGRAPH

CATEGORY AND TAGS:
AgroProduce Quality Analysis hot product

Model:HZL-350

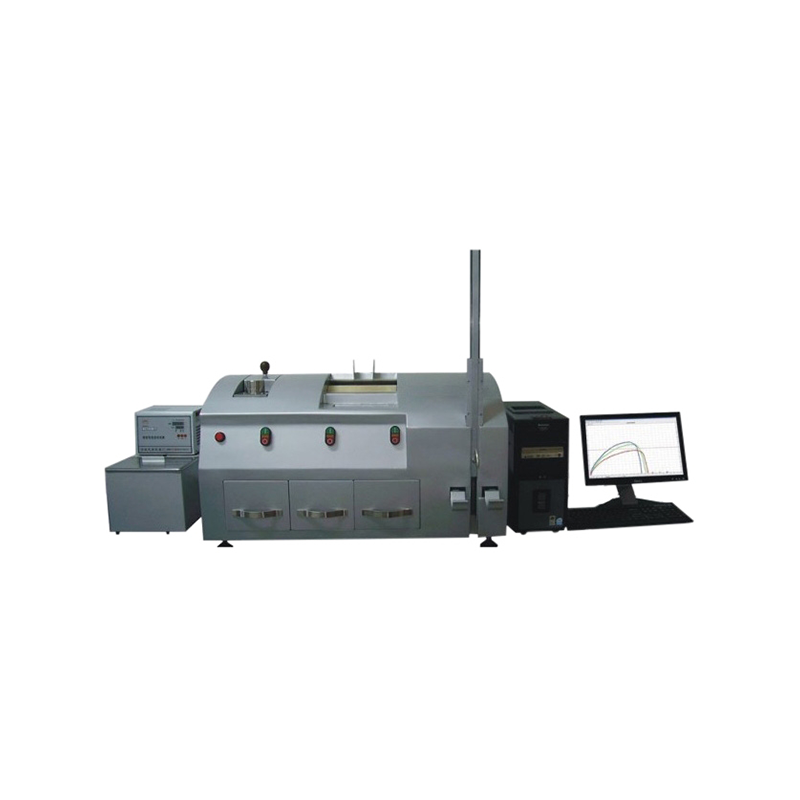

HZL-350 Digital Dough Tensile Analyzer

Model:HZL-350

Product Description

Characteristics

Drawer-typefermentation box,with spring and oil damping guide rail ,easy to open
Enclosed circular arc contour ,with dustproof,heat-held function and artistic steady natural appearance
Simultaneously display up to 5 groups of tensile curves,which facilitates contrasting their differences
Results saved in Access database ,the consult is convenient
Electronic transducer test stretch resistance ,accurate and reliable
Procedure automatic zero calibration ,automatic start cartography
Computer gathering ,analyzing data ,simple and highly efficient

Technical parameters

Sample weight	flour 300g+6g salt distilled water
Kneading-ball machine rotating spped	automatically stop after 83+-r/min,20r
Rubbing machine rotating spped	15+-1r/min
Hook-toothed tape spped	14.5+-0.5mm/s
Tension test mode	electronic pressure sensor
Computer connector	USB
Power	AC220V,50Hz
Shape size	92(L)64(W)95(H)cm
Weight	about 115kg
