Floor High Speed Refrigerated Centrifuge

» Seed Analysis » Floor High Speed Refrigerated Centrifuge

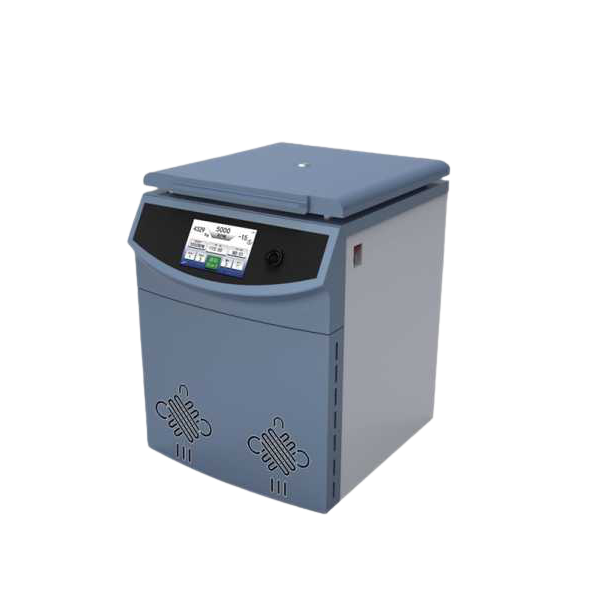

Floor High Speed Refrigerated Centrifuge

CATEGORY AND TAGS:
Seed Analysis

Model: TP4-21R

enquiry

Specifications

Product characteristics

* Double lock button electronic door lock, full steel door cover protection, superior to industrial standards.
* External heat dissipation design, efficient heat dissipation of the internal circuit of the main engine, the temperature rise in the cavity is better than the industry standard, to ensure the safety of the sample.
* High quality hydraulic rod, imported damper seal, hydraulic damper does not decay for ten years.
* Food-grade integrated silica gel sealing ring, life-long service, more sealable.
* The automatic identification system of magnetic rotor automatically matches the corresponding rotor program, prevents the rotor from overspeeding and ensures centrifugal safety.
* Humanized design is easy to operate, parameter setting is directly digital input, accurate to individual intelligent status prompt.
* It has many protective functions, such as door cover, overspeed, over-temperature, over-current, over-pressure, over-heat, etc.
The solution is more stable with simultaneous voice and text display.
* Unique noise reduction system, running more quiet.
* Self-diagnostic function voice text prompts and displays solutions, more stable and reliable with electronic instructions, never lost, easy to use.

Rotors of TP4-20 and TP4-20R Centrifuges

Model	TP4-21R
Capacity	12X 1.5/2.0ml
Max RCF (rpm)	100-23000rpm
Max RCF (Xg)	35720 Xg
Centrifugal tube size	O 10.3 X 41.2/X 10.7X42

Model	TP4-21R
Capacity	24 X 1.5/2.0ml
Max RCF (rpm)	100-18500rpm
Max RCF (Xg)	31375Xg
Centrifugal tube size	Medium 10.3X41.2/X 10.7X42

Model	TP4-21R
Capacity	12 X 10ml
Max RCF (rpm)	100-18000rpm
Max RCF (Xg)	29160 Xg
Centrifugal tube size	Medium 15.7X80.5

Model	TP4-21R
Capacity	12 X 15ml
Max RCF (rpm)	100-14000rpm
Max RCF (Xg)	21430 Xg
Centrifugal tube size	Medium 16.5X120

Model	TP4-21R
Capacity	6 X 50ml Sharp/Round type General purpose
Max RCF (rpm)	100-16000rpm
Max RCF (Xg)	28045 Xg
Centrifugal tube size	028.9 X 116/X 28.9 X 106.5

Model	TP4-21R
Capacity	6 X 100ml
Max RCF (rpm)	100-12500rpm
Max RCF (Xg)	19390 Xg
Centrifugal tube size	037.8X106.2

Model	TP4-21R
Capacity	4 X 250ml
Max RCF (rpm)	100-12000rpm
Max RCF (Xg)	21250 Xg
Centrifugal tube size	① 61.4X122

Model	TP4-21R
Capacity	4 X 500ml
Max RCF (rpm)	100-8000rpm
Max RCF (Xg)	10375 Xg
Centrifugal tube size	Medium 78.7X135.7

Model	TP4-21R
Capacity	4X8X0.2mlPCRPipe
Max RCF (rpm)	100-13500rpm
Max RCF (Xg)	11610Xg
Centrifugal tube size	240 X 145 X 27mm

Model	TP4-21R
Capacity	4X 500/750ml / adapter
Max RCF (rpm)	100-4000rpm
Max RCF (Xg)	3580 Xg
Centrifugal tube size	Medium 78.7X135.7/① 99.5X138

Model	TP4-21R
Capacity	4 X 2 X 96Elisa plate / Square hanging basket
Max RCF (rpm)	100-4200rpm
Max RCF (Xg)	3910Xg
Centrifugal tube size	Shallow hole:①6.3X 11.2 /Deephole:① 7.7X28.3

Instruction：TP4-21Rcentrifuge can be adapted to a series of high-quality aluminium and patentable new material rotors. In addition to conventional rotors, TP4-21R centrifuge al so adds several specially designed rotors to meet specific application requirements. (For customized rotor, please contact manufacturer)
