Laboratory Test Table High Speed Centrifuge

» Seed Analysis » Laboratory Test Table High Speed Centrifuge

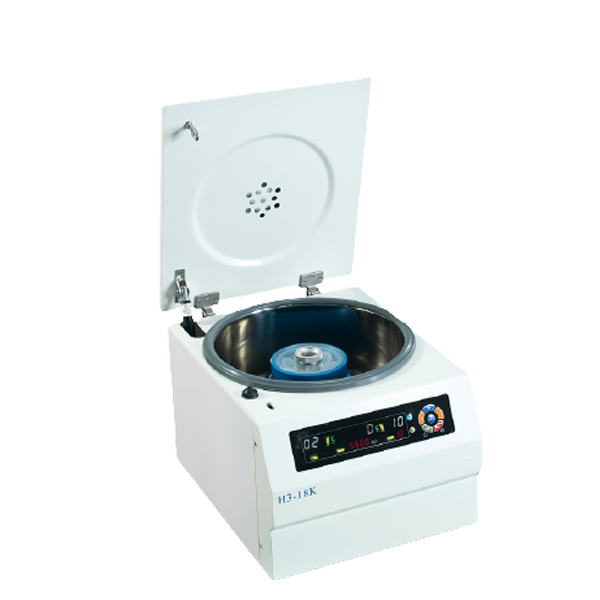

Laboratory Test Table High Speed Centrifuge

CATEGORY AND TAGS:
Seed Analysis

Model: TP3-18K

enquiry
  • Specifications
Key Features
◎Medium size and good compatibility with LED display.
◎Microcomputer control and driven by AC frequency conversion motor.
◎Acceleration/deceleration ,RPM , Speed and RCF can be customized based on request.
◎Automatically calculate RCF , RPM and RCF switching freely.
◎Up to 10 level accelerate and decelerate control.
◎One key short-time centrifuge button.
◎Over speed, over heat, unbalance protections with auto lid lock.
◎Equipped multiple capacity rotors for different Laboratory test requirements.



Applications
TP3-18K desktop high-speed centrifuges are widely used in clinical medicine, biochemistry, genetic engineering, immunology and etc. It is essential equipment for hospitals, research institutes and universities.

Technical Parameter

Model
TP3-18K
Max RPM
18500rpm
Max RCF
23900×g
Max Capacity
4×100ml
Timer
1min～99min
Revolutions/min
±10r/min
Voltage
AC 220±22V 50Hz 10A
Power
500W
Noise Level
≤ 60dB（A）
Chamber Diameter
Φ320mm
Dimensions (L x W x H)
440×360×330 (mm)
Packaging Dimensions
545×430×395(mm)
Net Weight
28kg
Gross Weight
35kg



Rotor Type
No.
Capacity
RPM（r/min)
RCF(×g)





Angel Rotor
1
12×1.5/2.2ml
18500rpm
23900×g
2
18×0.5ml
16000rpm
16000×g
3
10×5ml
15000rpm
15940×g
4
24×1.5/2.2ml
14000rpm
18757×g
5
36×1.5/2.2ml
14000rpm
20025×g
6
12×10ml
13000rpm
17370×g
7
6×50ml/ Round type
12000rpm
15285×g
8
6×50ml/ Sharp type
11000rpm
12840×g
9
12×15ml/ Sharp type
10000rpm
9690×g
10
4×100ml
10000rpm
9690×g
