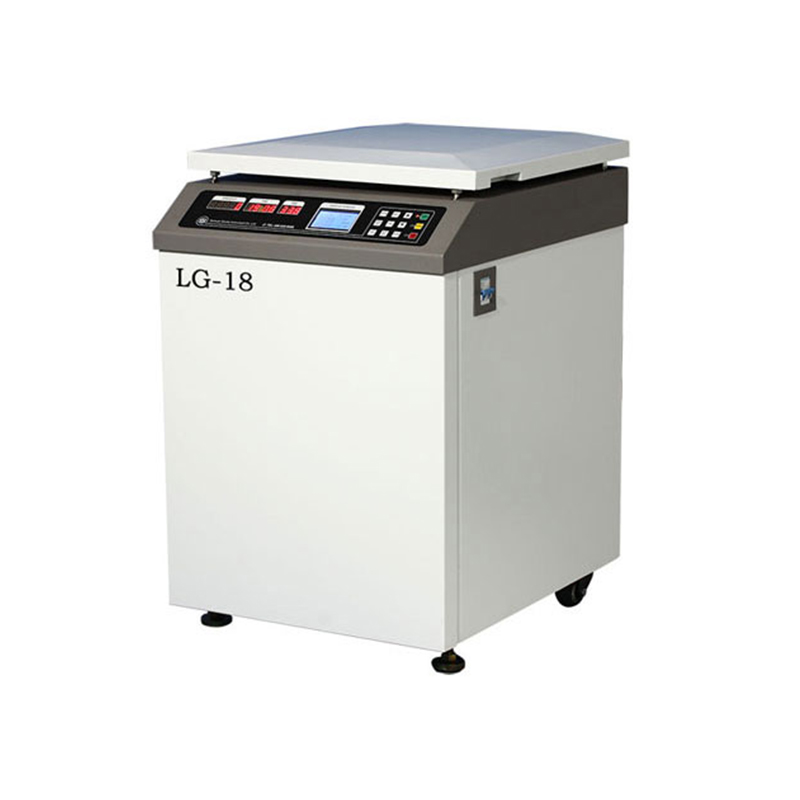

LG-18 Floor Standing High Speed Large Capacity Refrigerated Centrifuge

» General Lab Equipment » LG-18 Floor Standing High Speed Large Capacity Refrigerated Centrifuge

LG-18 Floor Standing High Speed Large Capacity Refrigerated Centrifuge

CATEGORY AND TAGS:
General Lab Equipment

Model：LG-18

enquiry
  • Specifications

Introduction:

The machine adopts frequency conversion driving, micro-computer control, liquid crystal display, electronic lock control and protection for imbalance. Rotors are recognized automatically. It can store 12 operation procedures and there are 19 levels of acceleration and deceleration for your choice. The refrigerating system uses imported compressors, CFC-free refrigerants, refrigerating/heating double loop, which make the machine highly efficient, heating and cooling fast and have small vibration. Operation parameters of instruments such as rotate speed/ centrifugal force, time and temperature can be modified during operation. This machine is widely used in biology, medicine and clinical medicine and can plays an important role in gene engineering as well as the research of protein nucleic acid. Whats more, it is used in the research of structure and function study at the level of DNA, DNA chain reactions, gene fragments separation and germ protein recycling.

LG-18 Specification：

Max Speed18000 r/min
Max RCF22500 xg
Max Capacity4x250ml(4500rpm)
Speed Accuracy±10r/min
Temp Accuracy±1℃
Temp Range-20℃～40℃
Timer Range1~99H59 min/inching
Noise≤60dB(A)
PowerAC 220V 50HZ 15A
Dimension650x550x840 (LxWxH) mm
Weight160 kg

Rotor Technical Data：

RotorCapacityMax SpeedMax RCF
NO.1 Angle Rotor12×1.5ml/2.2ml18000rpm22500Xg
NO. 2 Angle Rotor12x5ml16000rpm20790Xg
NO. 3 Angle Rotor24×1.5/2.2ml 15000rpm21800Xg
NO. 4 Angle Rotor12x10ml14000rpm18110Xg
NO. 5 Angle Rotor6x50ml12000rpm15970Xg
NO. 6 Angle Rotor4x100ml10000rpm10640Xg
NO. 7Angle Rotor6x10ml16000rpm19070Xg
NO. 8Angle Rotor6X15ml12000rpm14520Xg
NO.9 Swing-out ELISA Plate Rotor2x2x96 holes4000rpm1970Xg
NO. 10 Swing-out Rotor4x250ml4500rpm3720Xg
According to your needs, various specifications of angle, swing-out rotors and adapters can be customized.
