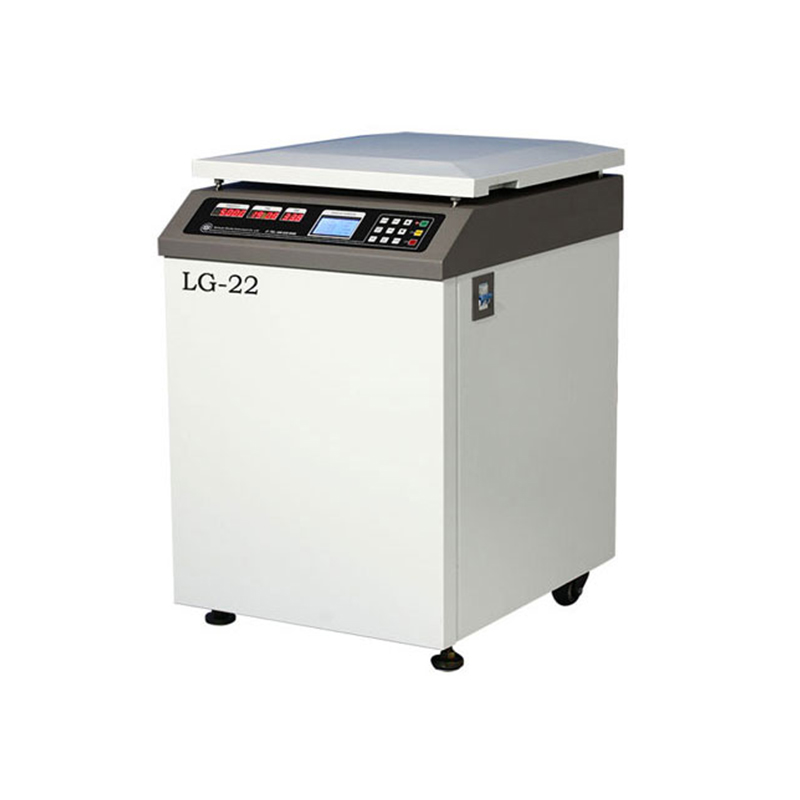

LG-22 Floor Standing High Speed Large Capacity Refrigerated Centrifuge

» General Lab Equipment » LG-22 Floor Standing High Speed Large Capacity Refrigerated Centrifuge

LG-22 Floor Standing High Speed Large Capacity Refrigerated Centrifuge

CATEGORY AND TAGS:
General Lab Equipment

Model:LG-22

enquiry
  • Specifications

Features & Advantages:

1. Variable frequency drive motor, microcomputer control

2. LCD & Digital display

3. Automatic rotor recognition to prevent from overspeed.

4. Automatic rotor locking,without locking nuts, bolts, wrenches, etc. It is safe, convenient and fast to take and placedirectly.

5. 40 levels of acceleration and deceleration, and it can store 12 users programs.

6. Automatic fault diagnosis

7. Imported compressor, CFC-free refrigerants, double circuit control for refrigeration and heating.

8. Programs of RCF can be set up directly.

9. Adopts Import famous variable frequency controller, which can control speed accurately and have a long service life.

10. *The operating parameters can be modified during operation.

11. All-steel body ,three-layer steel for safety

LG-22 Specification:

Max Speed22000 r/min
Max RCF34700 xg
Max Capacity4x750ml(4000rpm)
Speed Accuracy±10r/min
Temp Accuracy±1℃
Temp Range-20℃~40℃
Timer Range1~99H59 min/inching
Noise≤60dB(A)
PowerAC 220V 50HZ 15A
Dimension650x550x840(LxWxH) mm
Weight160 kg

Rotor Technical Data:

RotorCapacityMax SpeedMax RCF
NO.1 Angle Rotor12×1.5/2.2ml22000rpm34700Xg
NO. 2 Angle Rotor12x5ml17000rpm22330Xg
NO. 3 Angle Rotor24×1.5/2.2ml16500rpm27140Xg
NO. 4 Angle Rotor12x10ml15000rpm20160Xg
NO. 5 Angle Rotor6x50ml13000rpm18740Xg
NO. 6 Angle Rotor4x100ml11000rpm12870Xg
NO.7 Swing-out ELISA Plate Rotor2x2x96 holes4000rpm1970Xg
NO. 8 Swing-out Rotor4x250ml4500rpm3720Xg
NO. 9 Swing-out Rotor4x500ml4000rpm3400Xg
NO. 10 Swing-out Rotor4x750ml4000rpm3500Xg
According to your needs, various specifications of angle, swing-out rotors and adapters can be customized.
