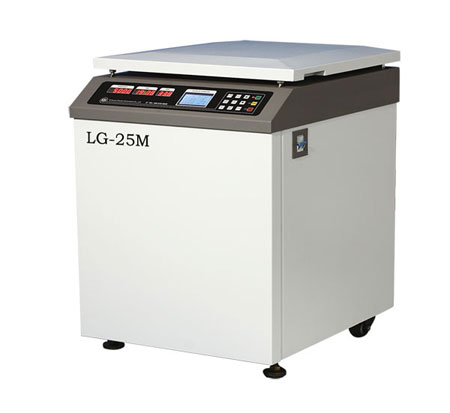

» General Lab Equipment » LG-25M Floor Standing High Speed Large Capacity Refrigerated Centrifuge
Model：LG-25M
enquiryFeatures & Advantages:
1. Variable frequency drive motors,microcomputer control LCD & Digital display
2. Automatic rotor recognition to prevent from overspeed.
3. Auto-lock rotor, placed and taken conveniently
4. 40 levels of acceleration and deceleration, and it can store 12 users programs. Automatic fault diagnosis
5. Imported compressor, CFC-free refrigerants, double circuit control for refrigeration and heating.
6. Programs of RCF can be set up directly.
7. Adopts Import famous variable frequency controller, which can control speed accurately and have a long service life.
8. The operating parameters can be modified during operation.
9. All- steel body, three-layer steel for safety
LG-25M Specification:
| Max Speed | 25000 r/min |
| Max RCF | 64800 Xg |
| Max Capacity | 4x1000ml(8000rpm) |
| Speed Accuracy | ±10r/min |
| Temp Accuracy | ±1℃ |
| Temp Range | -20℃～40℃ |
| Timer Range | 1～99H59 min/inching |
| Noise | ≤65dB（A） |
| Power | AC 220V 50HZ 32A |
| Dimension | 850x730x930 ( LxWxH) mm |
| Weight | 280 kg |
Rotor Technical Data:
| Rotor | Capacity | Max Speed | Max RCF |
| NO. 1 Angle Rotor | 24×1.5/2.2ml | 25000rpm | 64800Xg |
| NO. 2 Angle Rotor | 16x10ml | 23000rpm | 56880Xg |
| NO. 3 Angle Rotor | 8x50ml | 21000rpm | 52360Xg |
| NO. 4 Angle Rotor | 6x300ml | 12000rpm | 24110Xg |
| NO. 5 Angle Rotor | 6x500ml | 10000rpm | 18590Xg |
| NO. 6 Angle Rotor | 4x1000ml | 8000rpm | 12040Xg |
| NO. 7 Angle Rotor | 12x50ml | 14000rpm | 30070Xg |
| NO. 8 Swing-out Rotor | 4x750ml | 5000rpm | 5600Xg |
| NO. 9 Swing-out Rotor | 6x50ml | 10000rpm | 15680Xg |
