Made In China Superior Quality Hot Plate Stirer

» General Lab Equipment » Made In China Superior Quality Hot Plate Stirer

    • Made In China Superior Quality Hot Plate Stirer

    CATEGORY AND TAGS:
    General Lab Equipment

    Model: MS7-H550-S

    enquiry
    • Specifications
    Key Features

    • LED display for precise monitoring of temperature
    • A wide speed range of 0 to 1500rpm
    • Max. Heating plate temperature 550°C

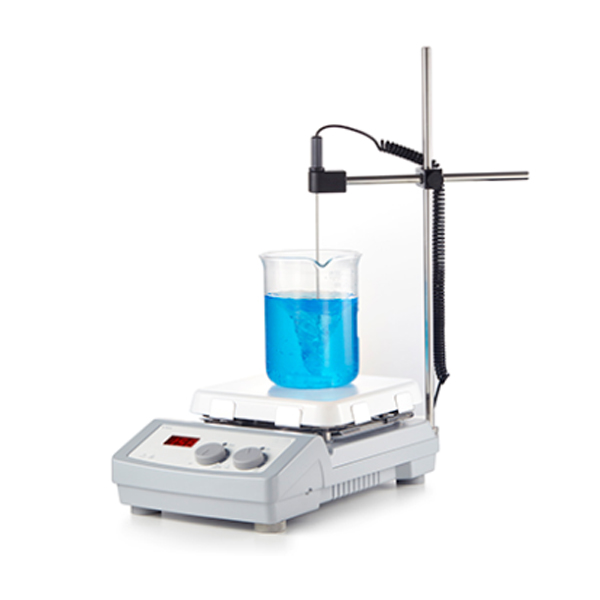

    • External temperature control is possible by connecting the temperature sensor(PT1000) with accuracy at ±0.2°C
    • The “HOT” warning will flash if the work plate temperature is above 50°C

    Specifications
    Specifications
    MS7-H550-S
    Work plate Dimension [W x D]
    184x184mm (7 inches)
    Work plate material
    Glass-ceramic
    Motor type
    Shaded pole motor
    Motor rating input
    15W
    Motor rating output
    1.5W
    Power
    1030W
    Heating output
    1000W
    Voltage
    100-120/200-240V 50/60Hz
    Stirring positions
    1
    Max. stirring quantity, [H2O]
    10L
    Max. magnetic bar[length]
    80mm
    Speed range
    0-1500rpm
    Speed display
    Scale
    Temperature display
    LED
    Heating temperature range
    Room temp.-550°C, increment 5°C
    Temperature control accuracy
    ±10°C
    Overheating protection
    580°C
    Temperature display accuracy
    ±1°C
    External temperature sensor
    PT1000 (accuracy ±0.2)
    “Hot” warning
    50°C
    Protection class
    IP21
    Dimension [WxDxH]
    215x360x112mm
    Weight
    4.5kg
    Permissible ambient temperature and humidity
    5-40°C, 80%RH
