The plant nutrition analyzer can perform non-destructive live detection of plants without affecting their growth. It can measure leaf temperature, nitrogen content, relative chlorophyll content, and leaf humidity. Widely used in agricultural and forestry related research institutions and universities for the study of plant physiology and guidance of agricultural production.
Product Features:
Live rapid non-destructive testing: Using non-destructive measurement methods to ensure that plant growth is not affected.
High precision guarantee: By using multi-point and multi-stage calibration techniques, the accuracy and reliability of each measurement are ensured.
Design of Leaf Chamber to Prevent Light Interference: Built in multi-layer anti-interference design in the structure effectively shields the influence of external light and environmental temperature on measurement results.
Multiple parameters, obtained at once: Measure the chlorophyll content, temperature, humidity, and nitrogen content of the leaves at once.
High definition display: Equipped with high-definition OLED display screen, providing high brightness and contrast, data display is clearer and more intuitive.

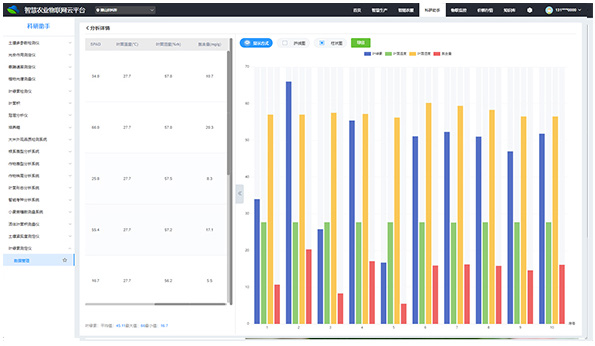

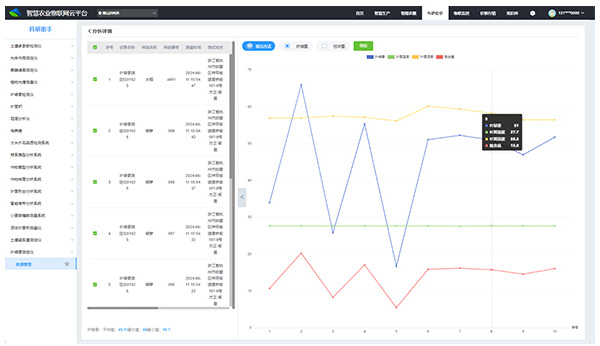

Data calculation function: Can display the average, highest, and lowest values of the last 30 sets of measurement data.

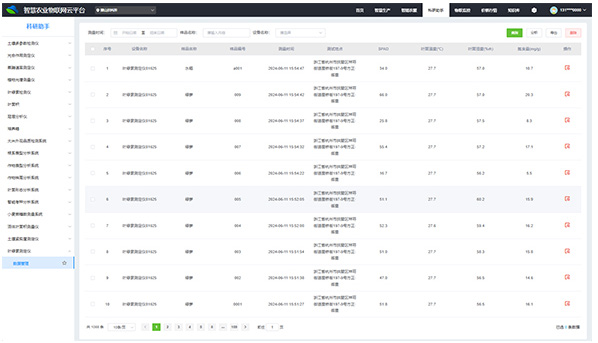

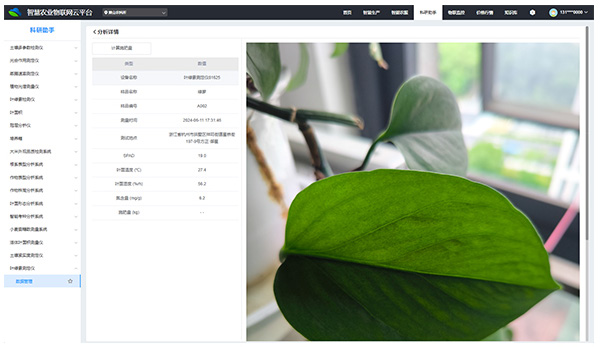

Intelligent interconnection function: Through Bluetooth wireless transmission, it achieves convenient connection with mobile apps and real-time data synchronization.
Intelligent low battery reminder: When the instrument has 20% remaining battery, the system will issue a low battery warning to ensure that the instrument does not suddenly shut down.
Technical Parameters:
Measuring Range:
chlorophyll : 0.0~99.9SPAD
Leaf surface temperature : 10~99.9℃
Nitrogen content : 0.0~99.9mg/g
Leaf surface humidity : 0.0~99.9%RH
Measurement accuracy:
chlorophyll : ± 1.0 SPAD (SPAD values range from 0 to 50 at room temperature)
Leaf surface temperature : ±0.5℃
Nitrogen content : ±5%
Leaf surface humidity : ±5%
Repeatability:
chlorophyll : ± 0.3 SPAD(SPAD values range from 0 to 50 )
Leaf surface temperature : ±0.2℃
Nitrogen content : ±0.5 units
Leaf surface temperature : ±0.5%
Max measured: thickness 1.2mm
Measurement time: interval 2 seconds
Measure area: 2mm*2mm
Power Supply: 2 1.5V dry batteries, capable of continuous measurement up to 5000 times
Data storage: capacity Host 2000 pieces of data, unlimited storage in the instrument APP
