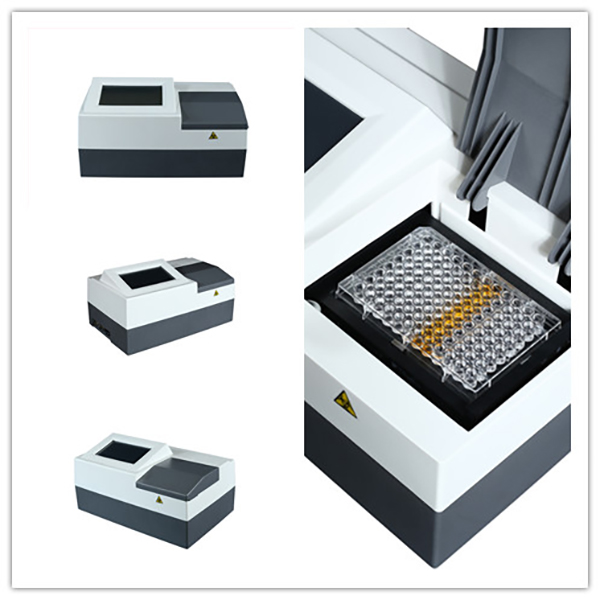

Automatic Elisa Analyzer
7-inch color LCD display, the touch screen operation
Visualization of panel and visualization of panel data
Center location, accurate data, good stability, and good repeatability.
Endpoint method, kinetic method, inhibition rate, single/dual-wavelength measurement
Wide voltage design and global power supply.
Main Parameters
Lamp：DC12V 22W Tungsten halogen lamp
Optical path:7 channel vertical light path system
Wavelength range：400-900nm
Filter: Default configuration 405、450、492、630nm,
Can be installed with up to 10 filters.
Reading range:0-4.000Abs
Linear range:0-3.000Abs
Resolution: 0.001Abs
Accuracy:≤±0.01Abs
Stability:≤±0.003Abs
Repeatability:≤0.3%
Vibration plate: Three kinds of the linear vibration plate
function, Adjustable 0-255 seconds
Display:7 inch color LCD screen, display the entire
board information, touch screen operation.
Software: Professional software, Can store 200
groups program, 100000 sample results,
More than10 kinds of curve fitting equations.
Power input:DC12v 5A
Weight:6Kg
