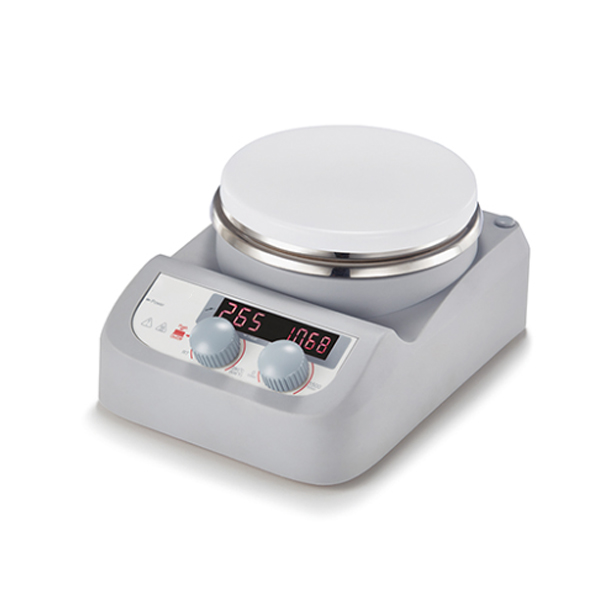

Promotional Durable Heated Magnetic Stirrer

» General Lab Equipment » Promotional Durable Heated Magnetic Stirrer

    • Promotional Durable Heated Magnetic Stirrer

    CATEGORY AND TAGS:
    General Lab Equipment

    Model: MS-H280-Pro

    enquiry
    • Specifications
    Key Features

    • Digital temperature control with max. temperature up to 280°C
    • Digital speed control with max. speed up to 1500rpm
    • Stainless steel work plate with a ceramic coating provides good chemical resistant performance
    • External temperature control is possible by connecting the temperature sensor(PT1000) with accuracy at ±0.5°C
    • LED display shows temperature and speed
    • The “HOT” warning will flash when the work plate temperature is above 50°C even if the hotplate is turned off

    Specifications
    Specifications
    MS-H280-Pro
    Work plate Dimension
    φ135mm(5 inches)
    Work plate material
    stainless steel cover with ceramic
    Motor type
    Brushless DC motor
    Motor rating input
    5W
    Motor rating output
    3W
    Power
    515W
    Heating output
    500W
    Voltage
    100-120/200-240V 50/60Hz
    Stirring positions
    1
    Max. stirring quantity[H2O]
    3L
    Max. magnetic bar[length]
    50mm
    Speed range
    200-1500rpm
    Speed display
    LED
    Temperature display
    LED
    Speed display resolution
    ±1rpm
    Heating temperature range
    Room temp.-280, increment 1°C
    Control accuracy of work plate
    ±1°C(<100°C) ±1%(>100°C)
    Overheat Protection
    320°C
    Temperature display accuracy
    ±1°C
    External temperature sensor
    PT1000 (accuracy ±0.5°C)
    “Hot” warning
    50°C
    Protection class
    IP21
    Dimension [W x D x H]
    150×260×80mm
    Weight
    1.8kg
    Permissible ambient temperature and humidity
    5-40℃ 80%RH
