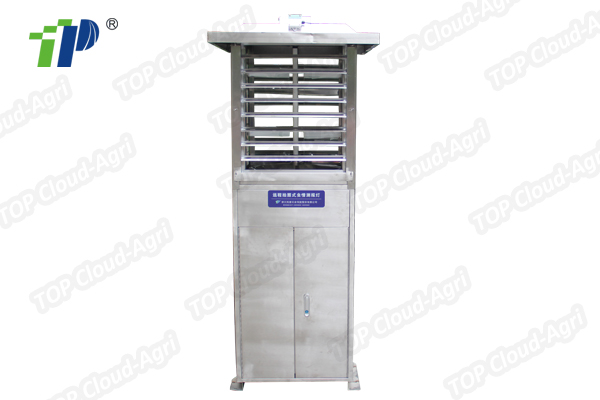

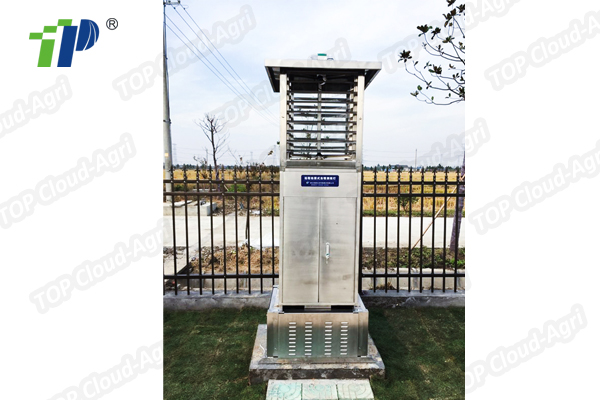

Remote Camera Type Pest Forecast Light Trap

» Pest, Bugs and Animal Analysis » Remote Camera Type Pest Forecast Light Trap

    • Remote Camera Type Pest Forecast Light Trap

    CATEGORY AND TAGS:
    Pest, Bugs and Animal Analysis

    Model: TPCB-II series/ TPCB-III series

    enquiry
    • Specifications

    Characteristics:

    • Equipped with 1200 million pixel camera.
    • Automatically calculate the pest and identify smaller pest.
    • Work normally in rainy days, avoid the information miss of pest migration.
    • Support functions of light control and time control.
    • Remotely upload the parameter to server though internet.
    • GPS positioning and anti-theft, support network of 2G/3G/4G/net wire/ wireless and gateway.

    Technical parameter:



    1. Light resource: 20w trap light tube, main wavelength: 365nm.
    2. Lamp turning on <5s after the device is on.
    3. Insulation resistance: < 2.5 Ω.
    4. Camera: 1200 million industrial camera.
    5. Display: 7 inch capacitive touch screen.
    6. Internet: limited fiber/ wireless bridge/4G router.
    7. Device size: 800*800*2009 mm.
    8. Working environment: 0-70℃
    9. Environment humidity: ≤ 90%

    Differences between models:



    TPCB-II-C 6.0 PLUS 1200 million pixel camera, AC power supply, automatically take photos and upload, manually count.
    TPCB-III-6.0 PLUS 1200 million pixel camera, solar power supply, automatically take photos and upload, manually count.
    TPCB-II-C-6.5 PLUS 2000 million pixel camera, AC power supply, automatically take photos and upload, manually count.
    TPCB-III-C-6.5 PLUS 2000 million pixel camera, solar power supply, automatically take photos and upload, manually count.
    TPCB-II-C-7.0 PLUS 2000 million pixel camera, AC power supply, automatically take photos and upload, manually count. Standard equipped: insect body filter in large size and small size.
    TPCB-III-C-7.0 PLUS 2000 million pixel camera, solar power supply, automatically take photos and upload, manually count. Standard equipped: insect body filter in large size and small size.
