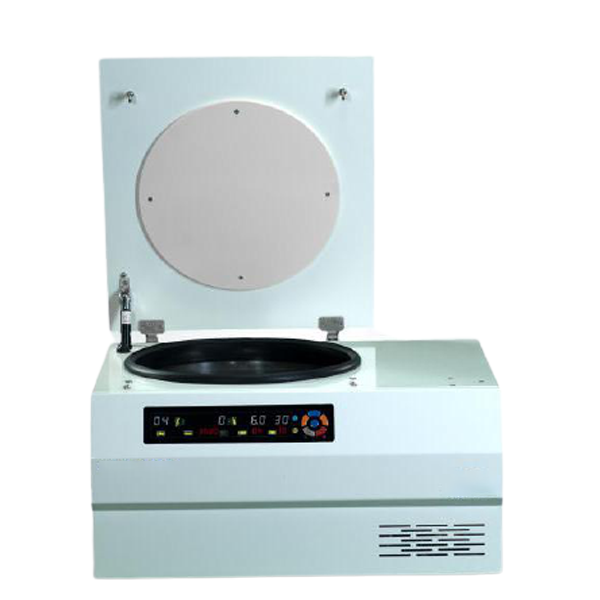

» Seed Analysis » Stainless Steel Table Low Speed Centrifuge For Lab
Model: TP3-5KR
enquiry◎Microcomputer control with LED display, driven by AC frequency conversion motor.
◎RCF and speed separately and switching free, automatically calculate RCF.
◎Up to 10 level accelerate and decelerate control.
◎Displayed in seconds when the countdown time is less than one minute.
◎Electronic locks with full steel inner cavity protective cover.
◎Imported energy-efficient ECO friendly refrigeration system.
◎One key pre-cooling function.
Applications
TP3-5KR bench top low-speed refrigerated centrifuge can be equipped with variety of rotors and adapters, suitable for separation and purification of radio immunity, clinical medicine, biochemistry, biopharmaceuticals, and blood products. It is an indispensable instrument for centrifugation at hospitals, research institutes and universities.
|
Model
|
TP3-5KR
|
|
Max RPM
|
5500rpm
|
|
Max RCF
|
4900×g
|
|
Max Capacity
|
4×250ml
|
|
Timer
|
1min～99min
|
|
Revolutions/min
|
±10r/min
|
|
Temp Range
|
-20℃～40℃
|
|
Temp Accuracy
|
±1.0℃
|
|
Voltage
|
AC 220±22V 50Hz 10A
|
|
Power
|
800W
|
|
Noise Level
|
≤ 60dB（A）
|
|
Chamber Diameter
|
Φ380mm
|
|
Dimensions (L x W x H)
|
550×650×365 (mm)
|
|
Packaging Dimensions
|
680×760×465(mm)
|
|
Net Weight
|
70kg
|
|
Rotor
|
No
|
Capacity
|
RPM/RCF
|
RCF(×g)
|
|
Angle Rotor（W）
|
1
|
4/6×50ml
|
5500rpm/ 4900×g
|
5310×g
|
|
Swing-out Rotor |
2
|
4×50/100ml
|
5000rpm/4390×g
|
4390×g
|
|
3
|
8×50/100ml
|
4000rpm/2810×g
|
2810×g
|
|
|
4
|
16×10/15ml
|
4000rpm/2810×g
|
||
|
5
|
24×10/15ml
|
4000rpm/2810×g
|
||
|
6
|
32×10/15ml
|
4000rpm/2810×g
|
||
|
7
|
48×5/7ml
|
4000rpm/2810×g
|
||
|
8
|
64x5ml
|
4000rpm/2810×g
|
||
|
9
|
4×250ml
|
4000rpm/3500×g
|
||
|
Micro plates rotor |
10
|
2×2×96 Hole
|
4000rpm/2300×g
|
2810×g
|
|
11
|
2×2×48 Hole
|
4000rpm/1700×g
|
3580×g
|
