Wheat Morphology Meter System

Introduction

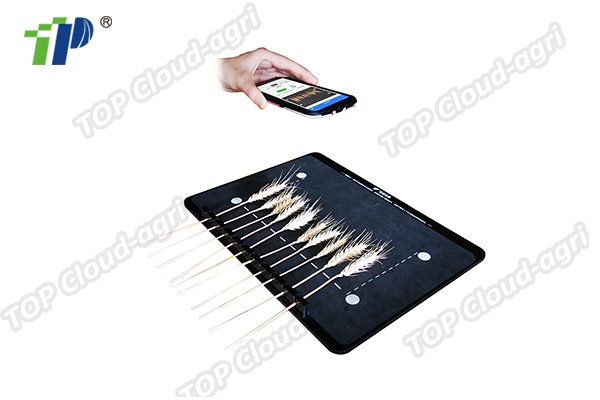

The Wheat Ear Morphology Meter System is based on machine vision technology, using mobile phone cameras to obtain wheatear images, using image processing algorithms to analyze on-site to obtain wheatear morphology parameters, and AI intelligent recognition uses technologies such as perspective change correction image, illumination compensation algorithm, distance change, etc., to automatically calculate the wheatear length, number of spikelets and average value of multiple wheats at one time.

Characteristics

1. Ultra-light design, convenient for indoor and outdoor measurement;

2. Large-screen with color touch screen, Android system, 64 million pixels;

3. Simultaneous measurement of multiple ears: 10 wheatears length and number of spikelets can be tested at a time;

4. The measurement speed is fast, and the result will be output within 3 seconds after taking a picture, which can be batch processed after taking pictures;

5. The scale is automatically calibrated, and the pictures taken obliquely can be automatically corrected to improve the accuracy of measurement;

6. Wide adaptability, no shading treatment, and the morphology of wheatears can be measured in vitro.

7. Automatically adjust the white balance, not affected by environmental conditions such as weather and light;

8. Diversified data viewing: After taking photos and analyzing, you can slide to view the results, and you can also view the data report in the history record, which can be exported to EXECL format;

9. Automatically generate data list: measurement time, picture, ear length and number of spikelets and other information, saving data sorting time;

Technical parameter

1. Dimensions: 460mm*360mm*15mm;

2. Material: black double-sided fine frosted acrylic;

3. EVA backplane size: 450*330*2mm;

4. Bottom plate material: black double-sided fine frosted acrylic;

5. Measuring range: 5~30cm;

6. Measurement error: ±2%;

7. Image resolution: 2400×1080;

8. Battery: 4500mAh battery life is more than 5h;
